Customized Automatic Cardboard Logistics System
Marca :Newkuani
El origen de los productos :China
El tiempo de entrega :20days
La capacidad de oferta :100sets/month
3)Function：Mainly used for transferring the corrugated cardboard sheet, front and back body is equipped with fan shaped laser SICK, which can alarm within the scope of 5 meters to 3 meters, can reduce the speed in range of 3 meters to 1.5 meters, can park alarm within the scope of 1.5 meters, as well as mechanical device crash barriers; this transfer car can run by manual.
Smart cardboard transportation system video：

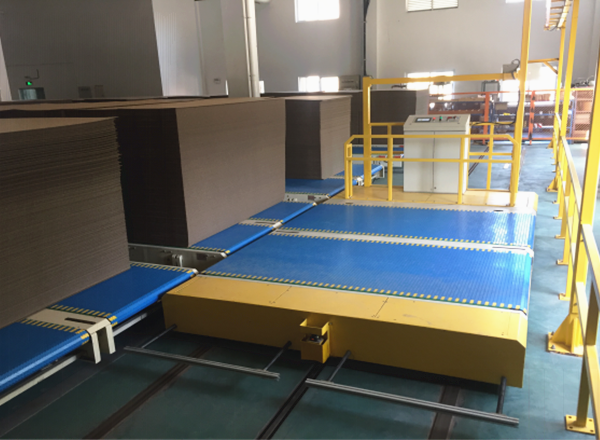

Module plastic belt transfer car：
1) Main parameters：
l Two stations, Max capacity：3000KG ；
l Motor Power：plastic belt：1.5Kw*2； car body：7.5Kw ;Bearing : FK;
l Belt speed：Max30m/min， Schneider inverter;
l Car speed：MAX120m/min；encapsulated wheels, Schneider inverter;
2) Plastic belt：POM material, plastic thickness 12mm，modules type，maintain easy and simpleã€less cost, supporting article adopts ultra-high molecular weight pressure, wear-resisting material, the lowest friction between plastic belt and supporting article.
3) Function：Mainly used for transferring the corrugated cardboard sheet, front and back body is equipped with fan shaped laser SICK, which can alarm within the scope of 5 meters to 3 meters, can reduce the speed in range of 3 meters to 1.5 meters, can park alarm within the scope of 1.5 meters, as well as mechanical device crash barriers; this transfer car can run by manual.
4) Outline example：
